DB0SAB - DMR/FM-Repeater Hosteberg

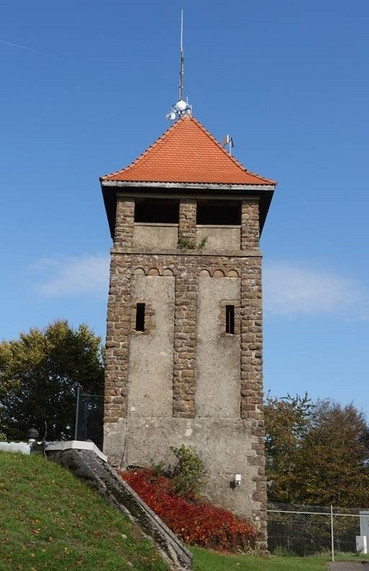

DB0SAB is a DMR/FM repeater located in Saarburg-Kahren on the Hosteberg tower.

Its 70cm antenna is mounted 21m above ground (about 455m above see level).



Technical data:

TX frequency:

439.075 MHz

RX frequency:

431.475 MHz

Offset:

7.6 MHz

Subtone (TX/RX):

79.7 Hz

Antenna:

Procom CXL 70-5C/l

Power

15 W EIRP

HAMNET:

Ubiquiti Power Beam M5-400



DB0SAB is connected to the Brandmeister network using a HAMNET link to DB0DTR (31.7 km distance).

In DMR mode the repeater is currently statically linked to the following talk groups:

Slot 1: TG9112 and TG262

Slot 2: TG2625 and TG9112

Users can dynamically select other talk groups as they prefer.



DB0SAB-2 - APRS Digipeater Hosteberg

DB0SAB-2 is an APRS Digipeater operating on 144.800 MHz.

Its antenna is mounted 21m above ground (about 455m above see level).

The temperature shown in the beacon message is measured inside the cabinet.



Technical data:

TX frequency:

144.800 MHz

RX frequency:

144.800 MHz

Modulation

FM (12.5 kHz raster)

Transceiver

Yaesu FT-2800M

Antenna:

Procom CXL 2-1LW

Power

10 W EIRP

Modem

Microsat WX3in1 Plus2.0



(C) DF2OO 2/2022
